Service mesh is a new technology stack aimed at solving the connectivity problem between cloud native applications. If you want to build a cloud native application, you need a service mesh. One of the big players in the service mesh world is Istio. Istio is best described in their own about page. It’s a very promising service mesh solution, based on Envoy Proxy, having multiple tech giants contributing to it.
Istio at the moment works best with Kubernetes, but they are working to bring support for other platforms too. So to deploy Istio and demonstrate some of its capabilities, there’s a need for a kubernetes cluster. To do that is pretty easy using Rancher 2.0.
To perform this demo, you will need the following:
a Google Cloud Platform account, the free tier provided is more than enough;
one ubuntu 16.04 instance (this is where the Rancher instance will be running)
a kubernetes cluster deployed to Google Cloud Platform, using Google Kubernetes Engine. This demo uses version 1.10.5-gke.2, which is the latest available at the time of writing;
1.10.5-gke.2
Istio version 0.8.0, the latest available at the time of this writing.
0.8.0
Normally the steps provided should be valid with newer versions, too.
To begin, start a Rancher 2.0 instance. There’s a very intuitive getting started guide for this purpose here. Just to be sure you’ll get the information you need, the steps will be outlined below as well.
This example will use Google Cloud Platform, so let’s start an Ubuntu instance there and allow HTTP and HTTPs traffic to it, either via Console or CLI. Here’s an example command to achieve the above:
gcloud compute --project=rancher-20 instances create rancher-20 \ --zone=europe-west2-a --machine-type=n1-standard-1 \ --tags=http-server,https-server --image=ubuntu-1604-xenial-v20180627 \ --image-project=ubuntu-os-cloud gcloud compute --project=rancher-20 firewall-rules create default-allow-http \ --direction=INGRESS --priority=1000 --network=default --action=ALLOW \ --rules=tcp:80 --source-ranges=0.0.0.0/0 --target-tags=http-server gcloud compute --project=rancher-20 firewall-rules create default-allow-https \ --direction=INGRESS --priority=1000 --network=default --action=ALLOW \ --rules=tcp:443 --source-ranges=0.0.0.0/0 --target-tags=https-server
Make sure you have at least 1 vCPU and about 4GB of RAM available for the Rancher instance.
The next step is to ssh into the instance and install Docker. Once Docker is installed, start Rancher and verify that it’s running:
ubuntu@rancher-20:~$ sudo docker run -d --restart=unless-stopped -p 80:80 -p 443:443 rancher/rancher Unable to find image 'rancher/rancher:latest' locally latest: Pulling from rancher/rancher 6b98dfc16071: Pull complete 4001a1209541: Pull complete 6319fc68c576: Pull complete b24603670dc3: Pull complete 97f170c87c6f: Pull complete c5880aba2145: Pull complete de3fa5ee4e0d: Pull complete c973e0300d3b: Pull complete d0f63a28838b: Pull complete b5f0c036e778: Pull complete Digest: sha256:3f042503cda9c9de63f9851748810012de01de380d0eca5f1f296d9b63ba7cd5 Status: Downloaded newer image for rancher/rancher:latest 2f496a88b82abaf28e653567d8754b3b24a2215420967ed9b817333ef6d6c52f ubuntu@rancher-20:~$ sudo docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 2f496a88b82a rancher/rancher "rancher --http-list…" About a minute ago Up 59 seconds 0.0.0.0:80->80/tcp, 0.0.0.0:443->443/tcp elegant_volhard
Get the public IP address of the instance and point your browser to it:
$ gcloud compute instances describe rancher-20 --project=rancher-20 --format="value(networkInterfaces[0].accessConfigs[0].natIP)" 35.189.72.39
You should be redirected to a HTTPS page of Rancher and you should see a warning from your browser, because Rancher uses a self signed certificate. Ignore the warnings, because this is the instance that you have started (never do that on untrusted sites!), and proceed to set up Rancher 2.0 by setting the admin password and server URL. That was it – you now have Rancher 2.0 running. Now it’s time to start your Kubernetes cluster.
To start a Kubernetes cluster, you’ll need a Google Cloud Service Account with the following Roles attached to it: Compute Viewer, Kubernetes Engine Admin, Service Account User, Project Viewer. Afterwards you need to generate service account keys, as described here.
Compute Viewer
Kubernetes Engine Admin
Service Account User
Project Viewer
Now get your service account keys (it’s safe to use the default Compute Engine service account); you will need your service account keys to start a Kubernetes cluster using Rancher 2.0:
gcloud iam service-accounts keys create ./key.json \ --iam-account <SA-NAME>@developer.gserviceaccount.com
Note the <SA-NAME>@developer.gserviceaccount.com value; you will need it later.
<SA-NAME>@developer.gserviceaccount.com
Now you’re ready to start your cluster. Go to the Rancher dashboard and click on Add Cluster. Make sure you do the following: * select Google Container Engine for the hosted Kubernetes provider; * give your cluster a name, for example rancher-demo; * import or copy/paste the service key details from key.json file (generated above) into Service Account field;
rancher-demo
key.json
Service Account
Proceed with Configure Nodes option and select the following: * for Kubernetes Version, it should be safe to select the latest available version; this test was done on 1.10.5-gke.2 version; * select the zone that is closest to you; * Machine Type needs to be at least n1-standard-1; * for Istio Demo, the Node Count should be at least 4;
Kubernetes Version
Machine Type
Node Count
Once these are selected, your setup would look like the image below:
Click with confidence on Create

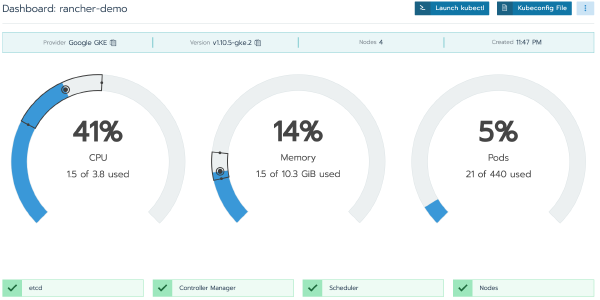

After several minutes you should see your cluster as active in Rancher dashboard. Remember that <SA-NAME>@developer.gserviceaccount.com value? You need it now, to grant cluster admin permissions to the current user (admin permissions are required to create the necessary RBAC rules for Istio). To do that, click on the rancher-demo Cluster Name in Rancher Dashboard, that will take you to rancher-demo Cluster dashboard, it should look similar to the image below:
Now Launch kubectl, this will open a kubectl command line for this particular cluster. You can also export the Kubeconfig File to use with your locally installed kubectl. For this purpose it should be enough to use the command line provided by Rancher. Once you have the command line opened, run the following command there:
Launch kubectl
Kubeconfig File
> kubectl create clusterrolebinding cluster-admin-binding \ --clusterrole=cluster-admin \ --user=<SA-NAME>@developer.gserviceaccount.com clusterrolebinding "cluster-admin-binding" created >
Istio has a Helm package and Rancher can consume that Helm package and install Istio. To get the official Istio Helm package, it’s best to add Istio’s repository to Rancher Apps Catalog. To do that, go to Rancher Global View, then to Catalogs option and select Add Catalog. Fill in there as follows: * for name, let’s put there istio-github; * in Catalog URL, paste the following URL: https://github.com/istio/istio.git (Rancher works with anything git clone can handle) * the Branch part should allow you now to write the branch name, set it to master It should look as in the screenshot below:
Add Catalog
istio-github
git clone
master
Hit Create
At this stage, you should be able to deploy Istio using Rancher’s Catalog. To do that, go to the Default Project of rancher-demo’s cluster and select Catalog Apps there. Once you click on Launch, you will be presented with a number of default available applications. As this demo is about Istio, select from All Catalogs, the istio-github catalog, that you’ve just created. This will present you with 2 options istio and istio-remote. Select View Details for istio one. You’ll be presented with the options to deploy Istio. Select the followings: * let’s set the name to istio-demo; * leave the template version to 0.8.0; * the default namespace used for istio is istio-system, thus set the namespace to istio-system; * by default, Istio doesn’t encrypt traffic between it’s components. That’s a very nice feature to have, let’s add it. On the same topic, Istio’s helm chart doesn’t add by default Grafana, that’s very useful to have, let’s add this one too. This is done by setting to true the global.controlPlaneSecurityEnabled and grafana.enabled variables. To do this: - click Add Answer; - put the variable name global.controlPlaneSecurityEnabled; - set it’s Value to true; - do the same for grafana.enabled;
Catalog Apps
istio
istio-remote
View Details
istio-demo
istio-system
global.controlPlaneSecurityEnabled
grafana.enabled
true
All of the above should look like in the screenshot below:
Everything looks good, click on Launch
Now if you look at the Workloads tab, you should see there all the components of Istio spinning up in your Cluster. Make sure all of the workloads are green. Also, check the Load Balancing tab, you should have istio-ingress and istio-ingressgateway there, both in Active state.
Workloads
Load Balancing
istio-ingress
istio-ingressgateway
Active
In case you have istio-ingressgateway in Pending state, you need to apply istio-ingressgateway service once again. To do that: * click on Import Yaml; * for Import Mode, select Cluster: Direct import of any resources into this cluster; * copy/paste istio-demo-ingressgateway.yaml Service into the Import Yaml editor and hit Import:
Pending
Cluster: Direct import of any resources into this cluster
This step should solve the Pending problem with istio-ingressgateway.
You should now check that all Istio’s Workloads, Load Balancing and Service Discovery parts are green in Rancher Dashboard.
Service Discovery
One last thing to add, so Istio sidecar container is injected automatically into your pods, run the following kubectl command (you can launch kubectl from inside Rancher, as described above), to add a istio-injected label to your default namespace:
istio-injected
> kubectl label namespace default istio-injection=enabled namespace "default" labeled > kubectl get namespace -L istio-injection NAME STATUS AGE ISTIO-INJECTION cattle-system Active 1h default Active 1h enabled istio-system Active 37m kube-public Active 1h kube-system Active 1h >
This label, will make sure that Istio-Sidecar-Injector will automatically inject Envoy containers into your application pods
Only now, you can deploy a test application and test the power of Istio. To do that, let’s deploy the Bookinfo sample application. The interesting part of this application is that it has 3 versions of the reviews app, running at the same time. Here’s where we can see some of Istio’s features. Go to the rancher-demo Default project workloads to deploy the Bookinfo app: * click on Import Yaml; * download the following bookinfo.yaml to your local computer; * upload it to Rancher by using the Read from file option, after you enter the Import Yaml menu; * for the Import Mode select Cluster: Direct import of any resources into this cluster; * click on Import
Import Mode
This should add 6 more workloads to your rancher-demo Default project. Just like in the screenshot below:
Now to expose the Bookinfo app via Istio, you need to apply this bookinfo-gateway.yaml the same way as the bookinfo.yaml. At this moment, you can access the bookinfo app with your browser. Get the external IP address of the istio-ingressgateway Load Balancer. There are several ways to find this IP address. From Rancher, you can go to Load Balancing, and from the right hand side menu select View in API, just like in the screenshot below:
bookinfo.yaml
View in API
It should open in a new browser tab, search there for publicEndpoints -> addresses and you should see the public IP address. Another way is via kubectl:
publicEndpoints -> addresses
> export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}') > echo $INGRESS_HOST
Point your browser to http://${INGRESS_HOST}/productpage and you should see the Bookinfo app. If you refresh your page multiple times, you should see 3 different versions for the Book Reviews part: - first one with no stars; - second one with black stars; - third one with red stars.
http://${INGRESS_HOST}/productpage
Book Reviews
Using istio, you can limit your app to route only to the first version of the app. To do that, Import the route-rule-all-v1.yaml into Rancher, wait for a couple of seconds, and then refresh the page multiple times. You should no longer see any stars on the reviews.
Another example is to route traffic to only a set of users. If you import route-rule-reviews-test-v2.yaml to Rancher, login to the Bookinfo app with username jason (no password needed), you should see only version 2 of the reviews (the one with the black stars). Logging out, will show you again only version 1 of the reviews app.
The power provided by Istio can already be seen. Of course, there are many more possibilities with Istio. With this setup created, you can play around with the tasks provided in Istio’s documentation
Now it’s time to dive into the even more useful features of Istio - the metrics provided by default.
Let’s start with Grafana. The variable grafana.enabled, that was set to true, when we deployed Istio, created a grafana instance, configured to collect Istio’s metrics and display them in several Dashboards. By default Grafana’s service isn’t exposed publicly, thus to view the metrics, you first need to expose Grafana’s service to a public IP address. There’s also the option to expose the service using NodePort, but this will require you to open that NodePort on all of the nodes from Google Cloud Platform firewall, and that’s one more task to deal with, thus it’s simpler to just expose it via a public IP address.
To do this, go to the Workloads under ranchers-demo Default project and select the Service Discovery tab. After all the work already done on the cluster, there should be about 5 services in the default namespace and 12 services in the istio-system namespace, all in Active state. Select the grafana service and from the right hand side menu, select View/Edit YAML, just like in the image below:
ranchers-demo
default
grafana
View/Edit YAML
Find the line that says type: ClusterIP and change it to type: LoadBalancer and confidently click Save. Now it should provision a load balancer in Google Cloud Platform and expose Grafana there, on it’s default port 3000. To get the public IP address of Grafana, repeat the process used to find the IP address for bookinfo example, meaning either view grafana service in API, where you can find the IP address, or get it via kubectl:
type: ClusterIP
type: LoadBalancer
Save
3000
export GRAFANA_HOST=$(kubectl -n istio-system get service grafana -o jsonpath='{.status.loadBalancer.ingress[0].ip}') echo $GRAFANA_HOST
Point your browser to http://${GRAFANA_HOST}:3000/, select one of the Dashboards, for example Istio Service Dashboard. With previously applied configurations, we limited traffic to show only version 1 of reviews app. To see that on the graphs, select reviews.default.svc.cluster.local form the Service dropdown. Now generate some traffic from Rancher’s kubectl, using the following commands:
http://${GRAFANA_HOST}:3000/
Istio Service Dashboard
reviews.default.svc.cluster.local
Service
export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}') for i in {1..1000}; do curl -o /dev/null -s -w "%{http_code}\n" http://${INGRESS_HOST}/productpage; sleep 0.2; done
Wait for about 5 minutes, to generate traffic for the Grafana to show on the Dashboard and after that, it should look like this:
If you scroll a little bit on the Dashboard, under SERVICE WORKLOADS you can clearly see on Incoming Requests by Destination And Response Code graph, that requests for the Reviews app end up only on v1 endpoint. If you generate some requests to version 2 of the app, with the following command (remember that user jason has access to v2 of the reviews app):
SERVICE WORKLOADS
Incoming Requests by Destination And Response Code
v1
v2
export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}') for i in {1..1000}; do curl -o /dev/null -s -w "%{http_code}\n" --cookie "user=jason" http://${INGRESS_HOST}/productpage; sleep 0.2; done
You should see requests appearing for the v2 app too, just like in the below screenshot:
In the same manner, there’s a possibility to expose and view other default metrics available from Istio, like Prometheus, Tracing and ServiceGraph.
As you already have seen, Istio is a very powerful and useful service mesh platform. It surely will become an essential tool in the Cloud Native world. The main problem, at the moment, is that it is not production ready, yet. To quote the one and only @kelseyhightower - “Don’t run out of here and deploy it in production. You’ll be on the news.” Anyways, you should definitely consider it, as it won’t take long until it will become production ready.
As for Rancher 2.0, it is very useful to see the whole kubernetes cluster state, all the workloads, services and pods. It provides an easy way to manage the cluster via the WebUI and deploy apps via Helm Charts, even for someone who isn’t very familiar with Kubernetes. With Rancher 2.0 you have everything you need to manage a kubernetes cluster and have a great overview of it’s state and I’m sure guys at Rancher will add more and more useful features to it.
